Solid CBN Inserts for machining Rolls

  Workpiece: Roll Material: Carbide Tungsten Hardness: HSD90 Inserts: RCGX190700 Grade: WBN25 Cutting Type: Dry Cutting Cutting parameters: Vc=70m/min, ap=10mm, f=2mm/r  ......

Solid CBN Inserts for machining Brake Drum

  Workpiece: Brake Drum (inner diameter of brake surface) Material: HT250 Hardness: HB180-210 Inserts: CNGN120716 Grade: WBN11 Cutting type: Wet cutting Cutting parameter:Vc=700m/min, ap=2~3mm, f=0.45mm/r  ......

Solid CBN Inserts for machining Brake Disc

  Workpiece: Brake Disc (Brake surface) Material: HT250 Hardness: HB180-210 Inserts: SNGN120716 Grade: WBN11 Cutting type: Dry cutting Cutting parameters: Vc=800m/min, ap=2.5mm, f=0.4mm/r  ......

Solid CBN Inserts for machining high nickel chromium rolls

  Workpiece: Roll Material: High nickel chromium cast iron Hardness: HSD78 Inserts: RNMN201000 Grade: WBN25 Cutting Type: Dry Cutting Cutting parameters: Vc=55m/min ap=2mm f=0.2mm/r  ......

Solid CBN Inserts for machining large Gear

  Workpiece: Large Gear Material: 42CrMo Hardness: HRC50~60 Inserts: SNGN150712 Grade: WBN50 Cutting Type: Dry Cutting Cutting parameter: Vc=100m/min, ap=4mm, f=0.7mm  ......

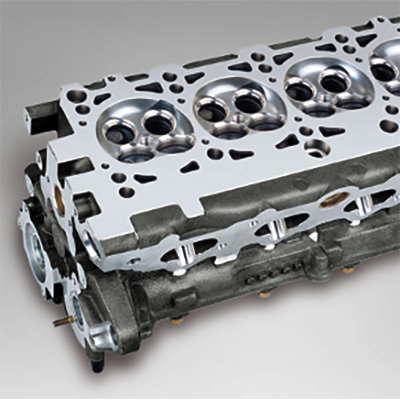

Solid CBN Inserts for machining Engine Cylinder Head

  Workpiece:Engine Cylinder Head Material: HT250 Hardness: HB180~220 Inserts: SNEN090408 Grade: WBN50 Cutting Type: Dry Cutting Cutting parameters: Vc=500m/min, ap=0.35mm  ......

Solid CBN Inserts for machining Engine Cylinder Block

  Workpiece:Engine Cylinder Block (Top Face of Cylinder Block) Material: HT250 Hardness: HB180~210 Inserts: SNGN090408 Grade: WBN50 Cutting Type: Dry Cutting Cutting parameters: Vc=480m/min, ap=0.5mm  ......

Solid CBN Inserts for machining Slewing Bearing

  Workpiece: Slewing Bearing Material: 42CrMo Hardness: HRC50~60 Insert: RCGX090700 Grade: WBN50 Cuuting Type: Dry Cutting Cutting parameters: Vc=90m/min, ap=0.3mm, f=0.3mm/r  ......

Solid CBN Inserts for machining Flywheels

  Workpiece: Flywheels (Plane and inner diameter) Material: HT250 Hardness: HB200 Inserts: RCGX090700 Grade: WBN11 Cutting Type: Dry Cutting Cutting parameters: Vc=250m/min, ap=0.5mm, f=0.25mm/r  ......
