Full Face PCD Inserts

Full Face PCD Inserts (Full Top PCD Inserts) have a complete PCD layer that sintered onto a carbide substrate layer, full face PCD inserts are widely used for fine milling, turning aluminum, aluminum alloy, cooper, cooper alloy, carbide tungsten, cooper and some other non-metal materials, such as automobile cylinder head, engine block.

The hot types are as follows:

(the other sizes are not listed on this page ,such as full face PCD inserts - TCGW TPGN CCGW, they all can be customized)

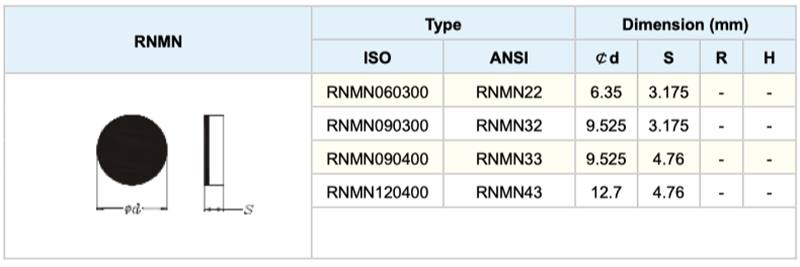

1. RNGN RNMN Series

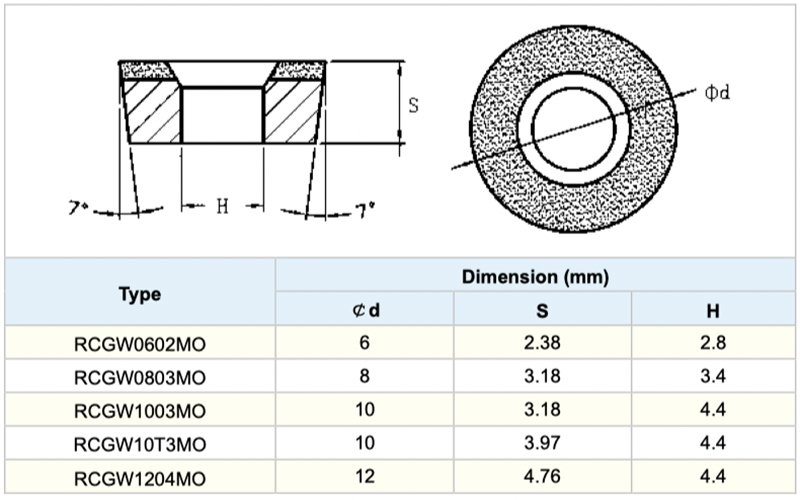

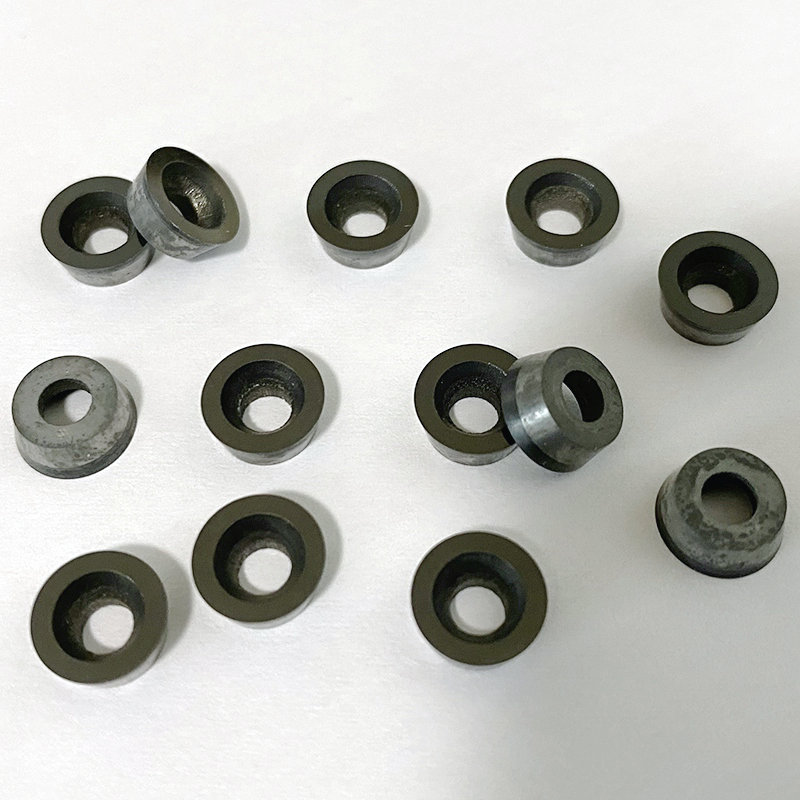

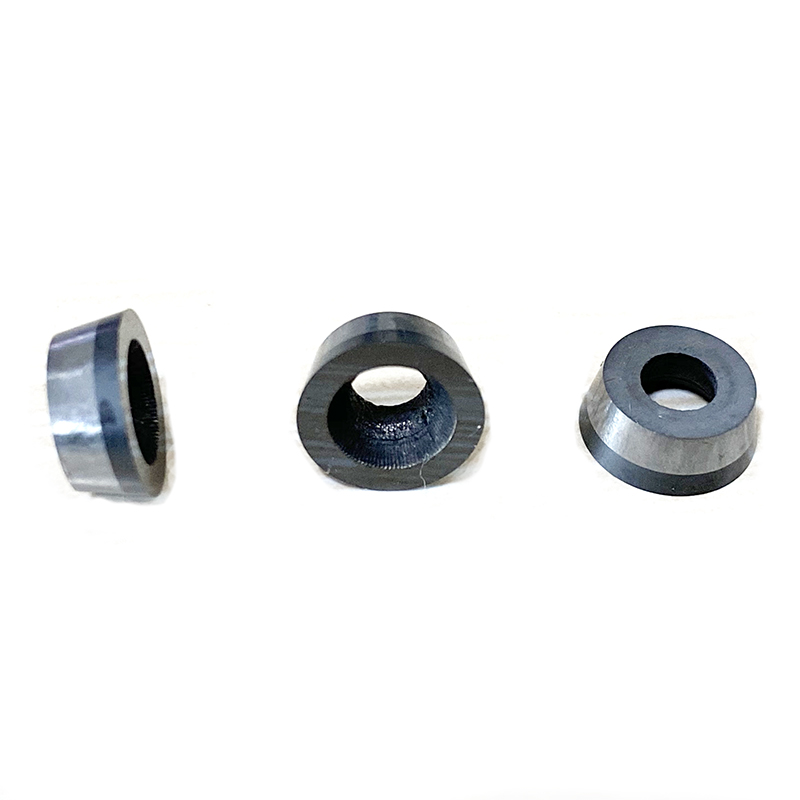

2. RCGW RCGX Series

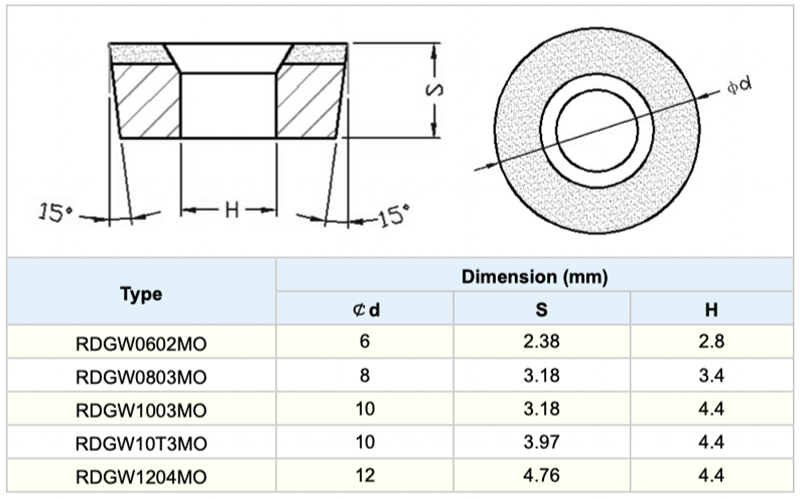

3. RDGW RDGX Series

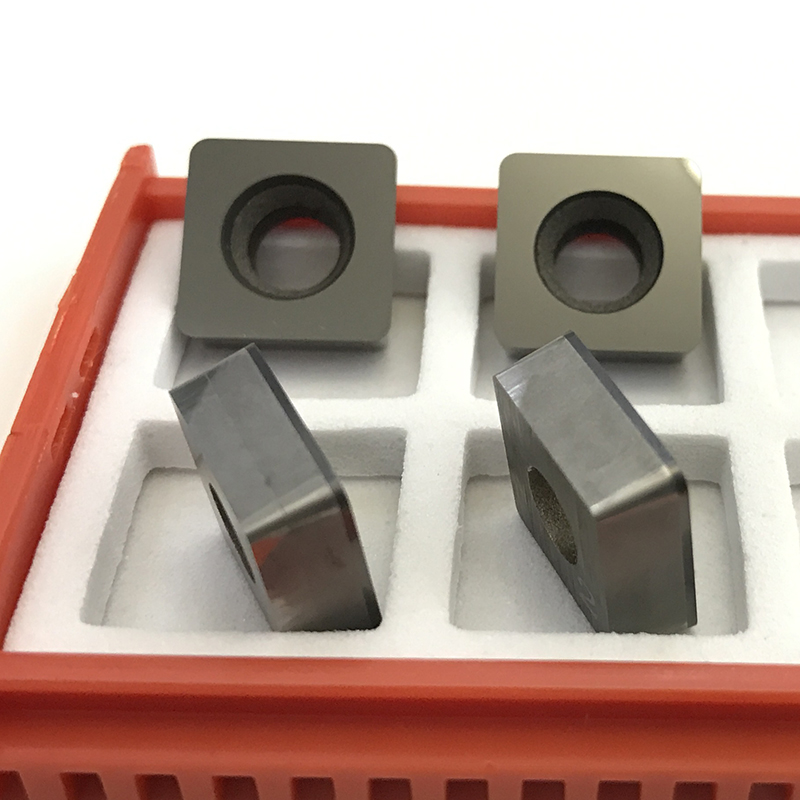

4. S Sharp Series - SCGW SEGX

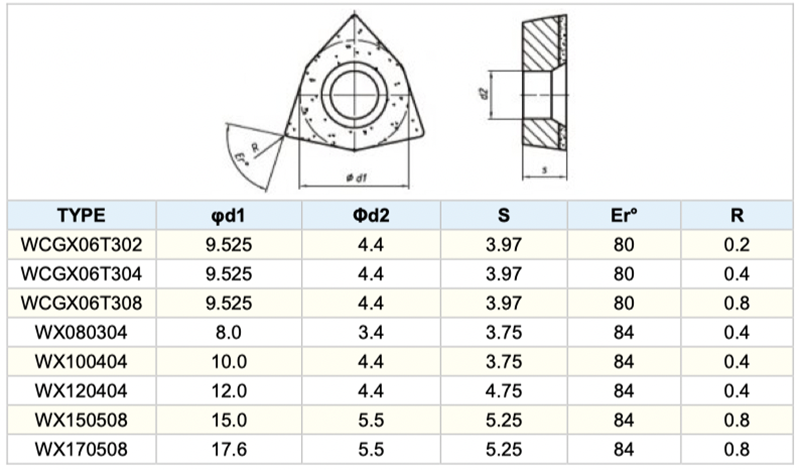

5. W Sharp Series -WCGX WCGX DFT - For Wind Turbine Blade of Wind Power Electricity Generation

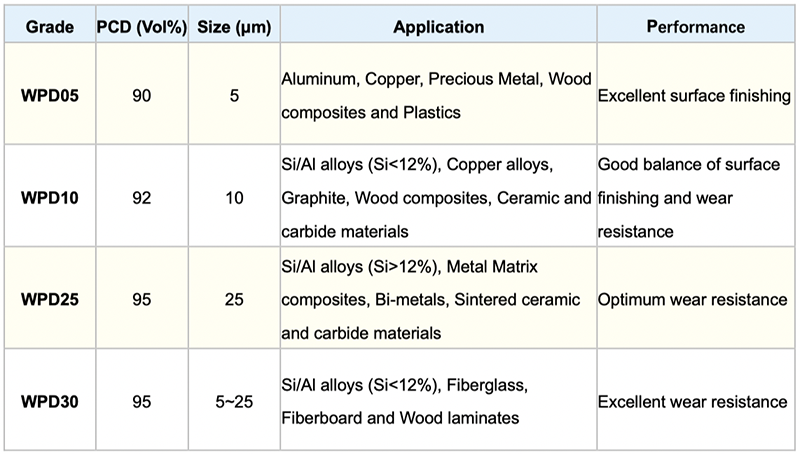

Grades of PCD Materials

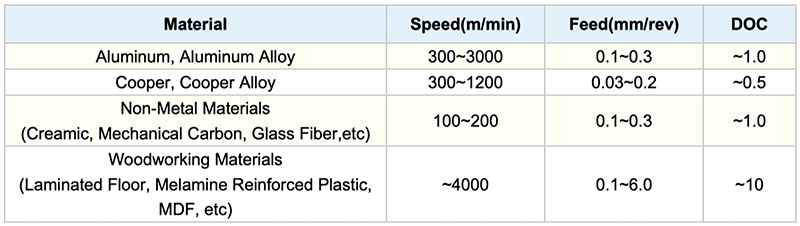

Recommended Cutting Parameters of Full Face PCD Inserts
